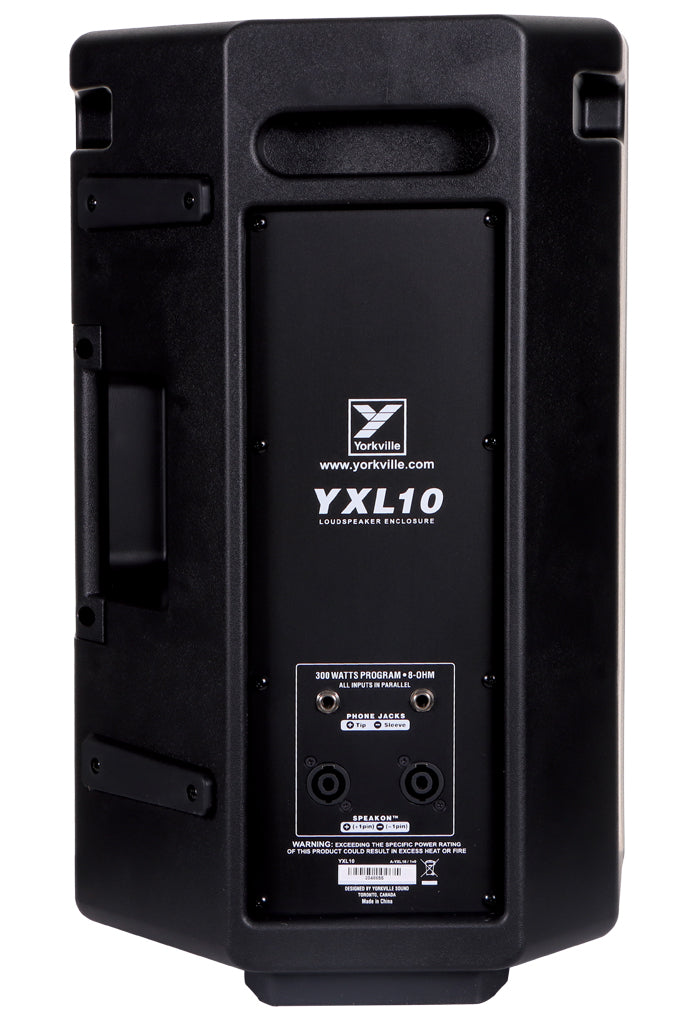

Yorkville YXL 10” Unpowered Loudspeaker

System Type

Unpowered Loudspeaker

Power Rating

1200 W Peak (600 W Program)

Nominal Impedance (Ohms)

8Ω

Sensitivity (dB AT 1Watt/1m)

97 dB

Max SPL

122 dB Continuous

Frequency Response (Hz +/- 3dB)

55 Hz - 16 kHz

Dispersion (H x V)

90° x 40°

Crossover Frequency

1.6 kHz

HF Driver(s)

1” compression driver

HF Horn

Integrated into Baffle

LF Driver(s)

10” with 2” Voice Coil

Inputs

2x Speakon

2x 1/4"

Bar Handles

2 (1x Side, 1x Back)

Flypoints

2 (2x Top, 1x Pullback)

Flying Hardware

M8 Metric Threading

Pole Mount Adapter (1 3/8

Dual Angle (1x Bottom)

Enclosure Materials

Polypropylene

Dimensions (DWH)

11” x 13.3” x 20.5” (28 cm x 33.5 cm x 52 cm)
