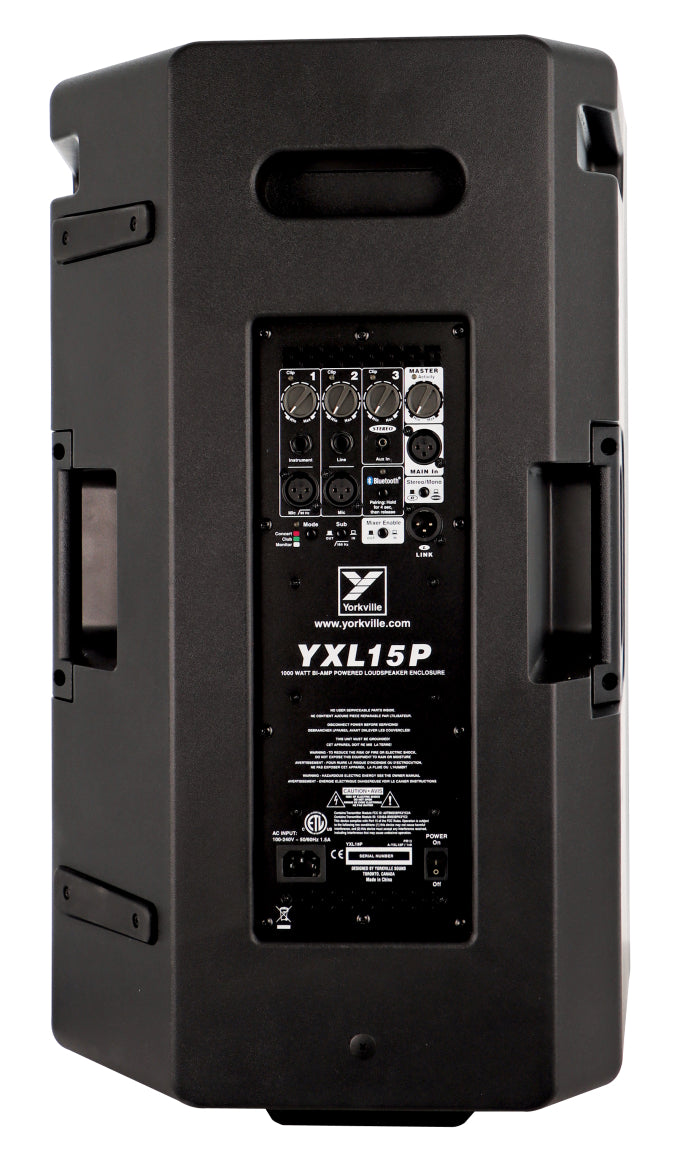

Yorkville YXL 15” Powered Loudspeaker

System Type

Powered Loudspeaker

Power Rating

1000 W Peak (500 W Program)

Max SPL

127 dB Continuous

Frequency Response (Hz +/- 3dB)

45 Hz - 16 kHz

Dispersion (H x V)

90° x 40°

Crossover Frequency

1.6 kHz

HF Program Power (Watts)

100 W Peak (50 W Program)

HF Horn

Integrated into Baffle

LF Driver(s)

15” with 2.5” Voice Coil

LF Program Power(Watts)

900 W Peak (450 W Program)

HF Amplifier Type

Class A/B

LF Amplifier Type

Class D

Cooling Scheme

Speed-Controlled Fan

In / Out Connections

1x Main In (XLR), 1x Link (XLR)

Channel 1 Input

1x XLR, 1x 1/4" (Line)

Channel 1 Controls

Level Control

Channel 2 Input

1x XLR, 1x 1/4" (Instrument)

Channel 2 Controls

Level Control

Channel 3 Input

1/8", Bluetooth® Streaming

Channel 3 Controls

Level Control

Level Controls

3x Channels, 1x Master

EQ Controls

Concert, Club, and Monitor Voicing Modes

Limiter

Multiband Excursion, RMS, Rail

Other Controls / Features

Sub Mode HP Filter, Mixer In / Out

Stereo / Mono Out

3.5mm Aux In

Bluetooth Streaming

Bar Handles

3 (1x Each Side, 1x Back)

Flypoints

2 (2x Top, 1x Pullback)

Flying Hardware

M8 Metric Threading

Pole Mount Adapter (1 3/8

Dual Angle (1x Bottom)

Enclosure Materials

Polypropylene

Dimensions (DWH)

14.8” x 17” x 27.4” (37.5 cm x 43.2 cm x 70.4 cm)
